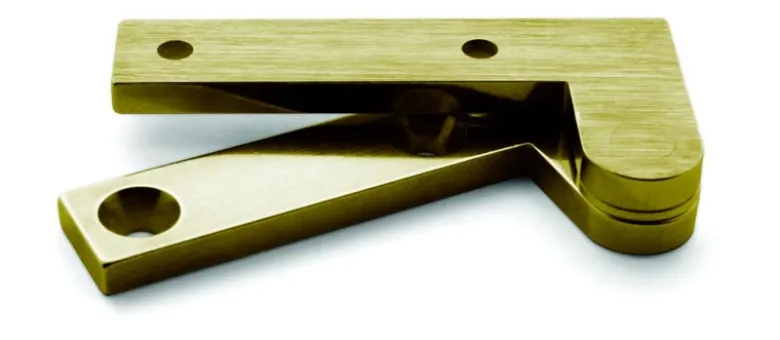

Brusso Brass Offset Pivot Hinge L-39

Product Description

The Brusso L-39 brass offset pivot hinge is employed when a minimum of visible hardware is desired, or when the door must swing free of its frame. It is morticed into the top and bottom of the door and frame; only the pivot is visible. The leaf measures 1¾” x 3/8″ x 1/8″. The L-39 has a longer knuckle for wide throw conditions.

Length: 1.750″ – 1¾” – 44mm
Width: 0.375″ – 3/8″ – 9mm
Leaf Thickness: 0.125″ – 1/8″ – 3mm

NOTE – All Brusso hinges come in PAIRS (so one pack will allow you to do top and bottom of one door). Screws are INCLUDED. A single stainless steel screw is also included with brass hinges. This is used to make a pilot hole for the brass screws to help prevent any damage to the brass screws.
