Crucible Dovetail Template for 1:6 & 1:8

Product Description

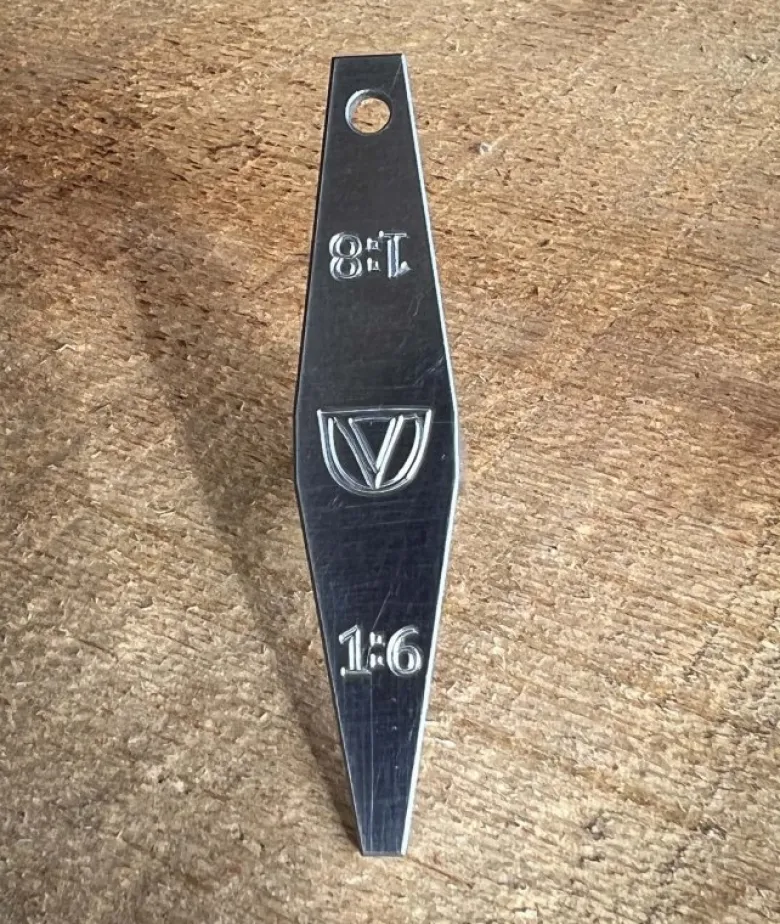

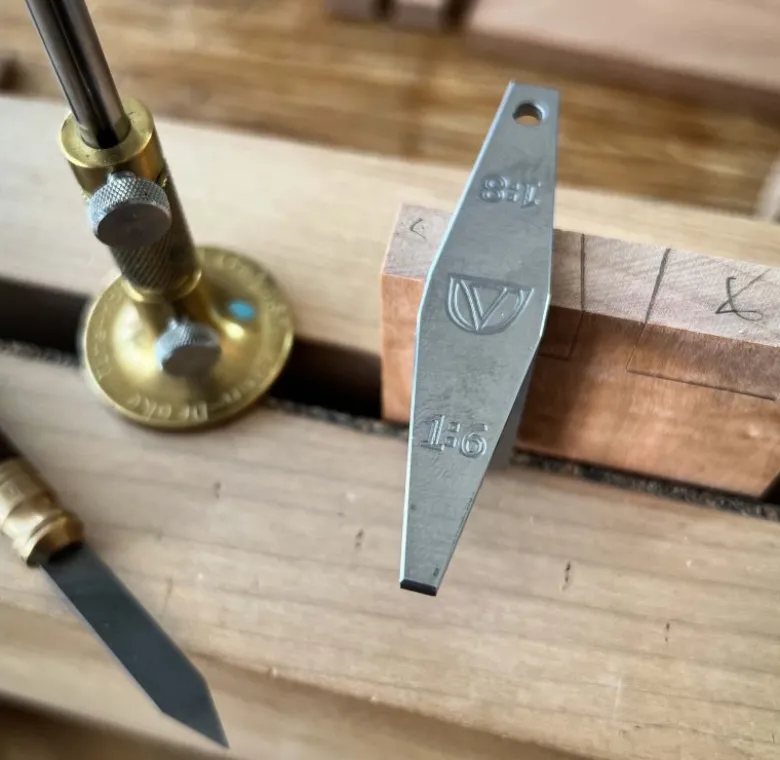

The Crucible Dovetail Template marks out dovetail joints – both the tails and the pins – and allows you to easily and accurately lay out the angled and straight parts of the joint. This template marks out the two most common dovetail slopes, 1:6 and 1:8 (9.5° and 7.1° respectively).

This solid steel template is based on a discontinued version from Woodjoy Tools. We contacted the designer, Glenn Livingston, to obtain his blessing for our tool, and he receives a royalty on every one sold.

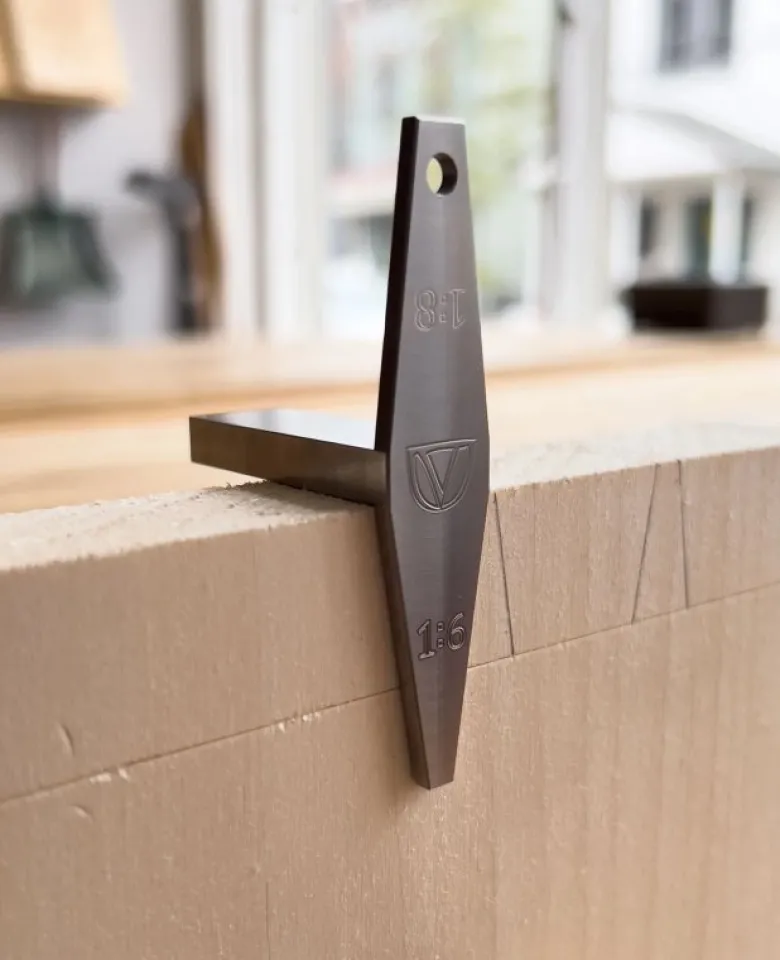

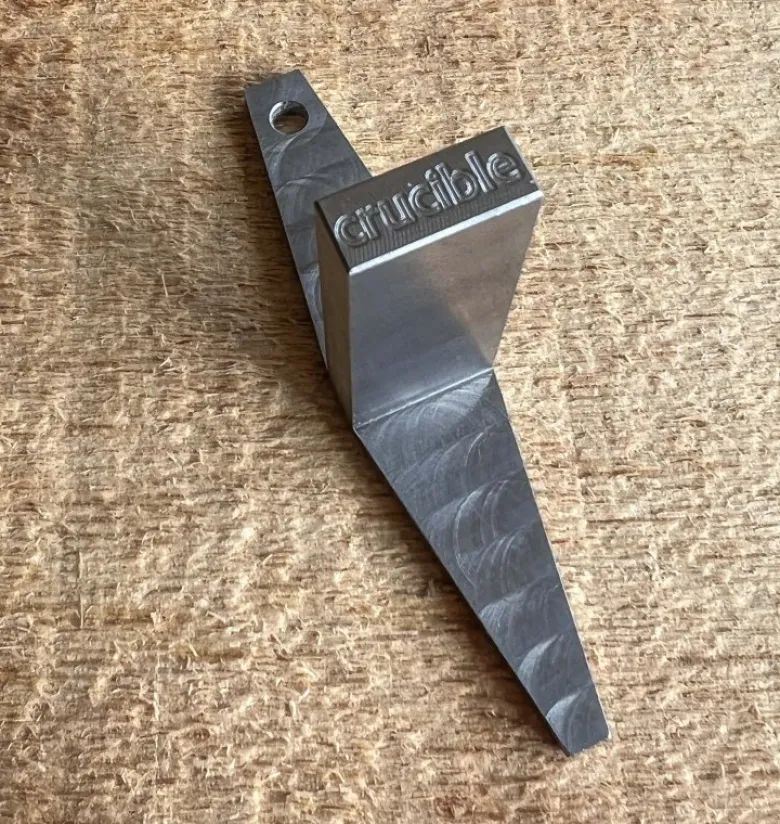

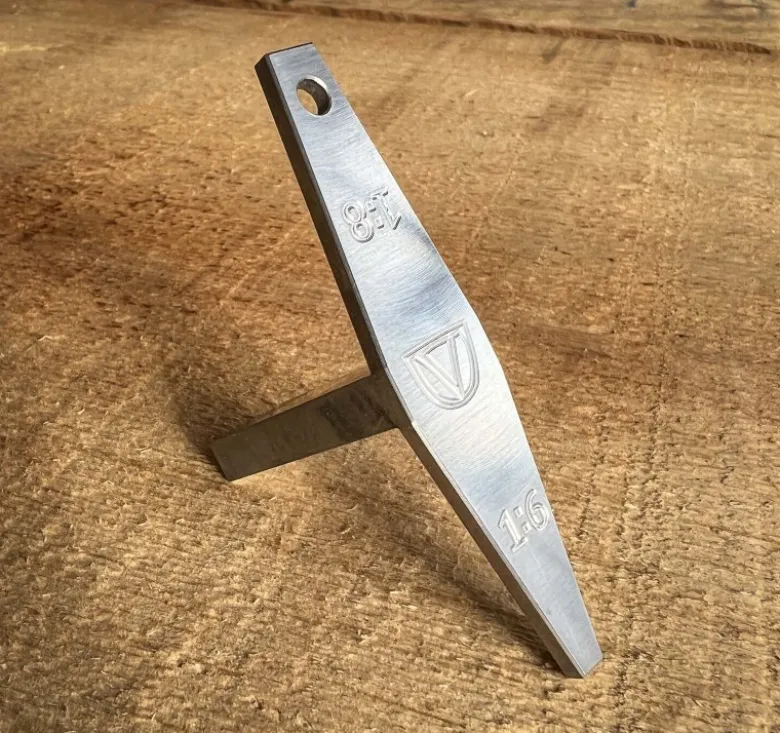

Unlike the original, the Crucible Dovetail Template is milled from one piece of steel, which ensures a perfect 90° at the corner. (While this might seem wasteful, all the excess is recycled.) The tool measures 5/8″ x 1 11/16″ x 3″. The angled sections of the tool are long enough to mark out tails in 1 3/8″ stock. The straight section of the tool is long enough to reach fully across two 3/4″ thick boards (for those who gang-cut dovetails). There’s also a handy hang hole, just like on the original.

The Crucible Dovetail Template is made in Kentucky, USA.
