Rob Cosman Wood Hinge Drill Kit – Imperial

Product Description

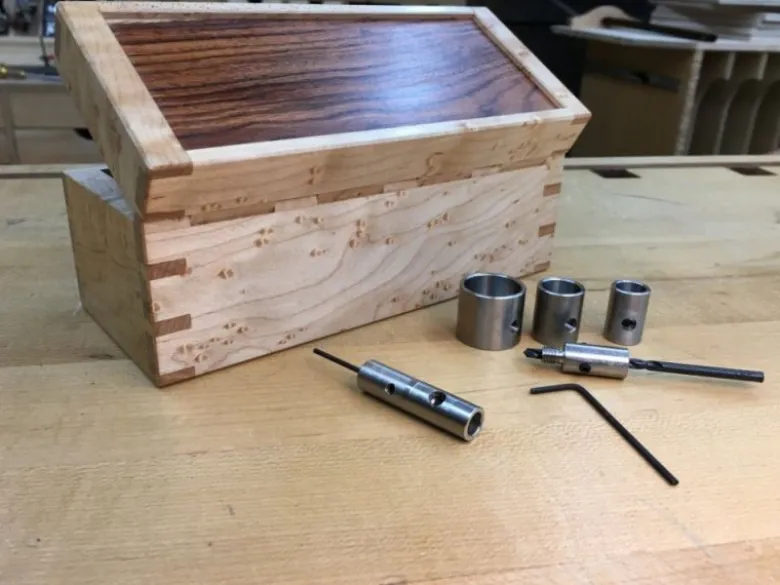

Rob Cosman’s Wood Hinge Drill Kit as seen on “The Woodhinge Box”

Rob made thousands of boxes using this style of hinge and I have designed four jigs to precisely drill the hole in the center of dowel segments (the most difficult task).

• Kit allows you to drill 1/16 inch and 1/8 inch size holes in 1/4 inch, 1/2 inch, 3/8 inch, and 3/4 inch diameter dowels.

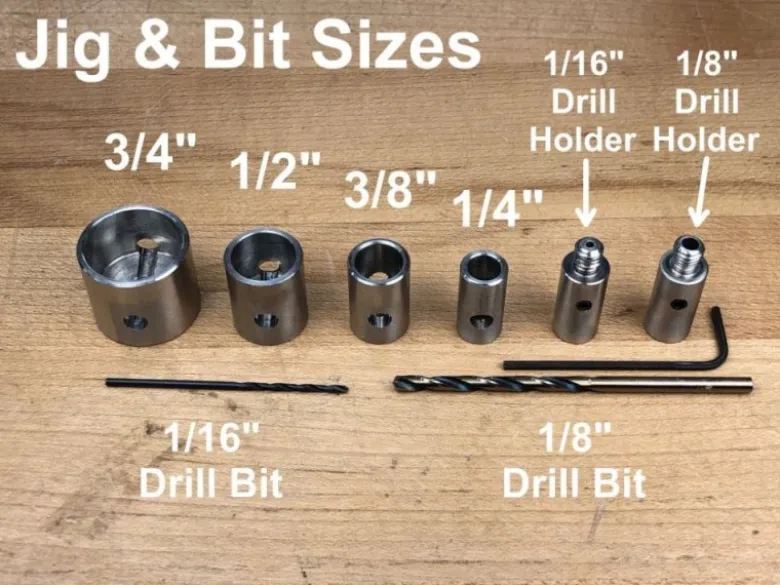

• Kit includes 1/16 inch and 1/8 inch drill bit holders; 1/4 inch, 3/8inch, 1/2 inch, and 3/4inch drill jigs; 1/16 inch and 1/8 inch drill bits; and a 1/16 inch Allen wrench
• 1/16 inch drill bit is used with 1/4 inch and 3/8 inch diameter dowels.
• 1/8 inch drill bit is used for the 1/2 inch and 3/4 inch diameter dowels.
• Opposing set screws hold the drill bit securely and allow for adjustment of the hole depth.
• Designed to be used with 1/16 and 1/8 inch welding rod as the hinge axle.
