Veritas Jack Rebate Plane + PM-V11 Blade

Product Description

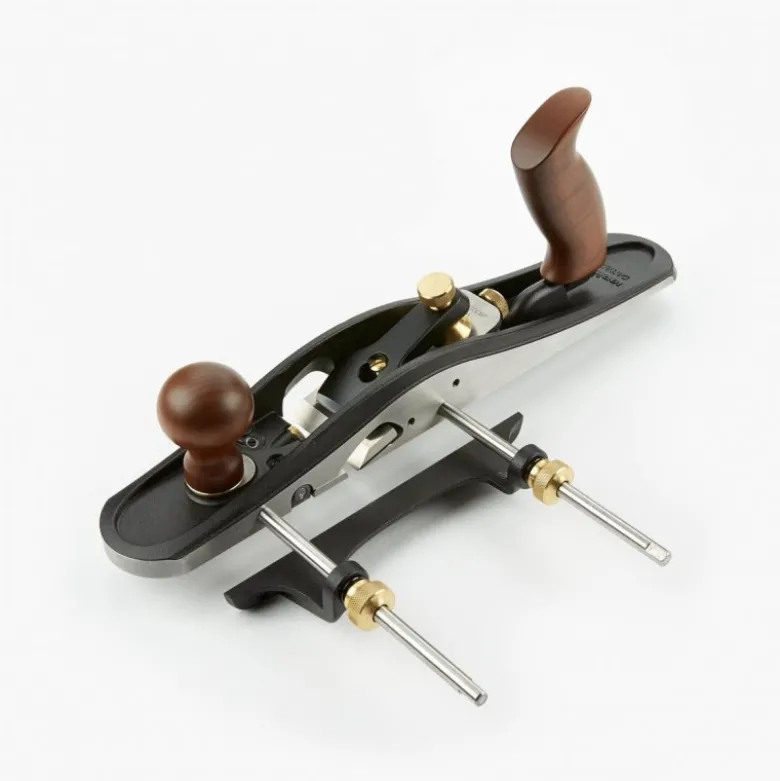

This Veritas Jack Rebate plane cuts large-scale rebating down to size. The body is 385mm long and the blade extends the full width (57mm) of the body. It is suitable for very large rebates and fielded or bevelled panels. The long sole and substantial mass help ensure accuracy.

The 4.8mm thick bevel-up blade makes right or left-handed corner cuts cleanly and accurately. Adjustable scoring spurs on either side of the body scribe the cut ahead of the blade, minimising tear out on cross-grain work. Mounted on two steel fence rods with brass collet screws, the 185mm long removable fence can be set up to 133mm from the shoulder. The rear tote tilts and locks to either side for knuckle clearance. The mouth is adjustable, a narrow slit for fine shavings or opened for heavier cuts.

A Norris-style mechanism combines feed and lateral adjustments for easy, precise blade setting. Includes a lapped PM-V11 steel blade.

Made in Canada.
