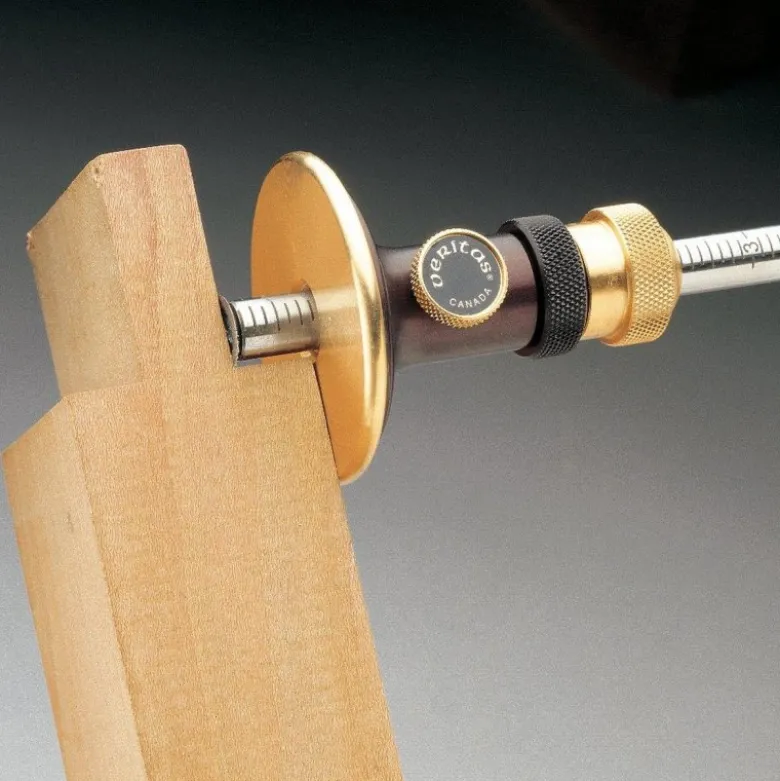

Veritas Micro Adjust Marking Gauge

Product Description

The Veritas wheel marking gauge is a great workhorse and excellent value. Its popularity led to the development of a second model that incorporates a micro-adjust feature. It is similar to our standard wheel marking gauge with an anodized aluminium body, brass face, stainless-steel rod and internal O-ring to keep a constant light friction force on the rod. It differs in that the body is slightly longer and is fitted with a two-stage collet that allows micro-adjustment of the cutting wheel. The collet has a fine-pitch thread; one revolution advances or retracts the wheel 1/32″, a half turn 1/64″, a quarter turn 1/128″, etc. The knurled thumbscrew then locks the setting.

The hardened steel wheel cuts wood fibres rather than tearing them, which leaves a clean mark, even on cross grain. The wheel’s single-sided bevel also forces the gauge face against the stock, maintaining accuracy. The cutting edge of the wheel is at the extreme end of the shaft, which is useful for transferring dimensions such as tenon shoulder or mortise depth. The wheel retracts into the face of the gauge for storage.
