Veritas Planing Stop

Product Description

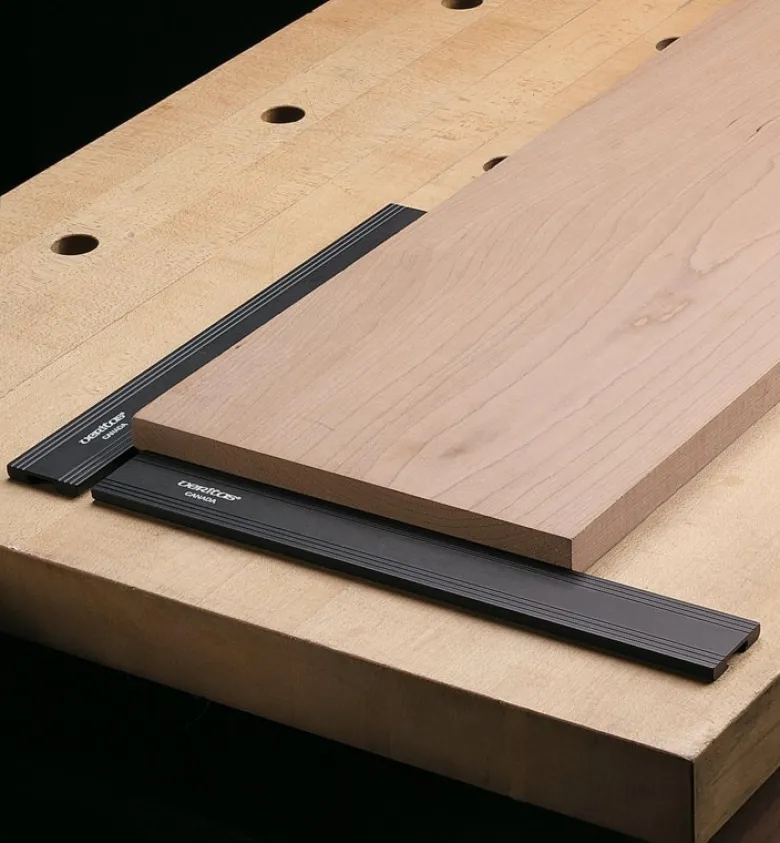

These low-profile work stops present a broad bearing surface. Particularly useful with thin or narrow workpieces, each 1 1/4″ wide anodized aluminum rail projects just 0.22″ above the bench top, allowing materials as thin as 1/4″ to be worked or planed without obstruction. It also provides a reliable registration surface for materials too narrow to span two adjacent bench dogs.

The two steel posts slide along a T-track on the underside of the rail; with 3/4″ (19mm)posts sized to fit 3/4″diameter dog holes. The posts on the 9 3/4″ stop can be spaced up to 9″ apart (center to center).6 3/4″ apart.

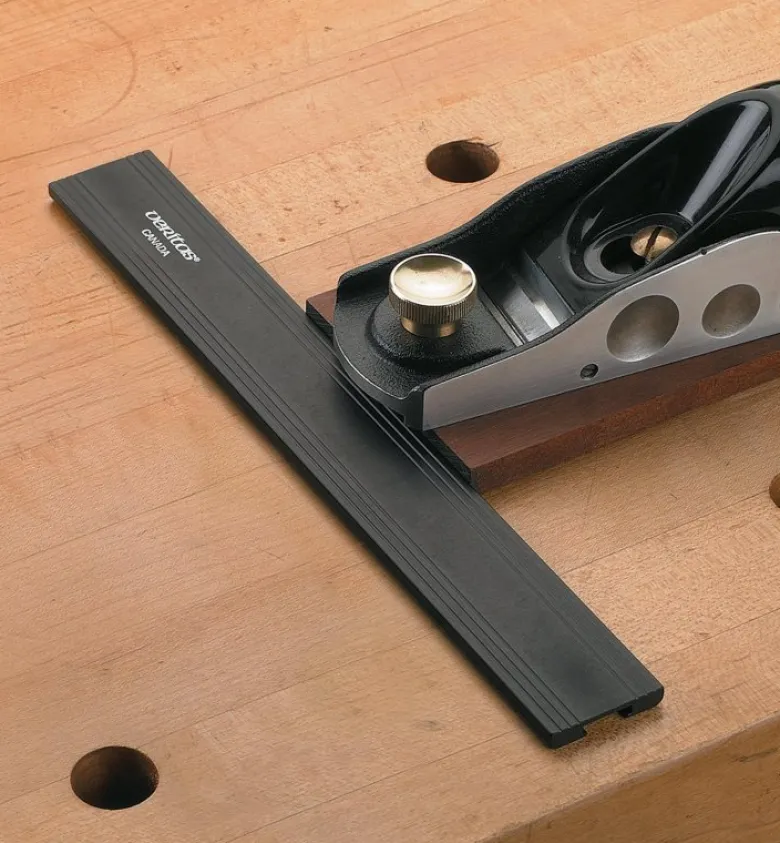

For tasks that involve the application of horizontal force in one direction, such as planing, a single stop can be used with no additional clamping. Stops can also be placed perpendicular to one another to capture two edges of the workpiece to prevent rotation. A simple way to secure work without the constraints of typical clamping methods.

9 3/4″ (248mm) long. 3/4″ (19mm) posts.
