Benchcrafted Glide Leg Vice Base Hardware – Cast

Product Description

The Benchcrafted Glide makes holding your work quick, easy, and pleasurable. It uses a clever combination of components to deliver incredible clamping force with minimal effort.

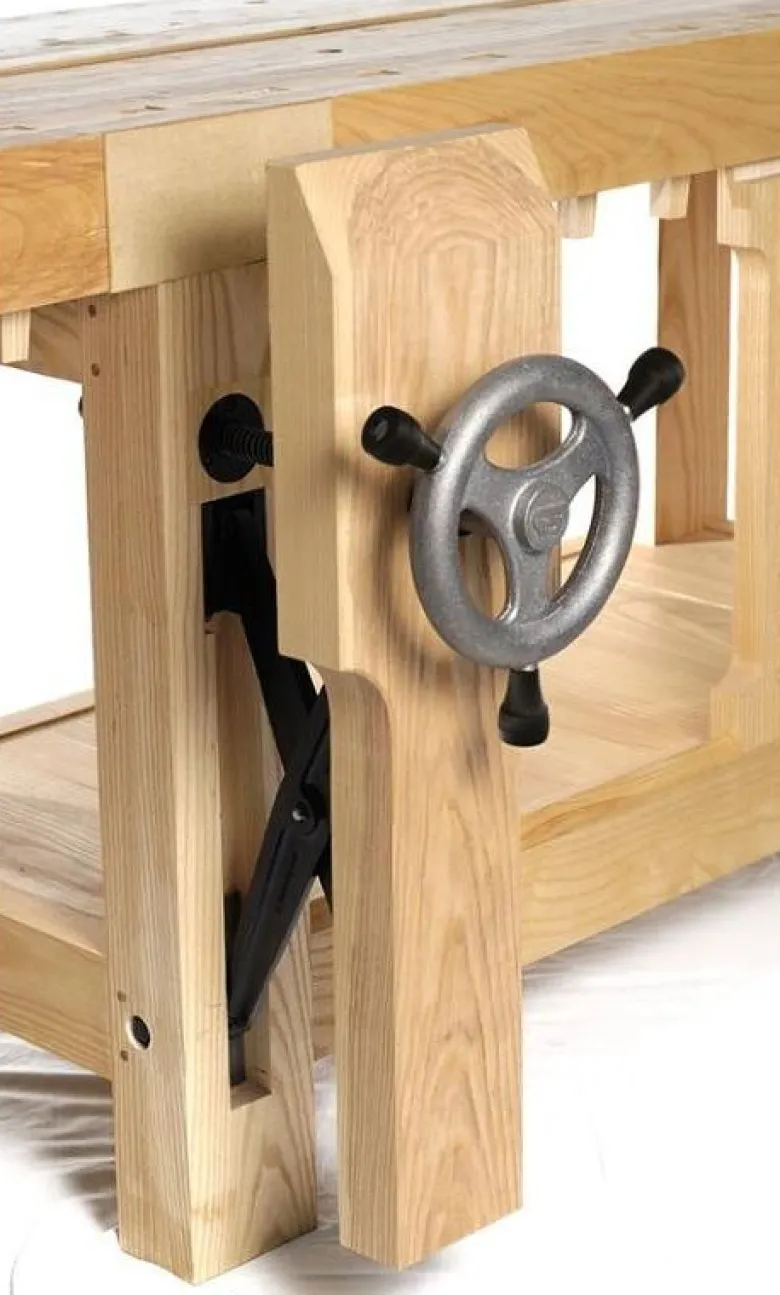

Traditional leg vices use a sliding ”tommy bar”to operate the vice. This style of handle offers one distinct advantage: lots of leverage. These guys have engineered the Glide to deliver rock-solid workholding without the need for the big lever of a tommy bar. The massive handwheel allows you to operate the vice with minimal effort and speed. Acting like a flywheel, the handwheel turns the screw and allows you to rapidly adjust the vice with a quick spin. You can open the vice to full capacity (typically 9”) in about 4 seconds. Closing it is just as quick and easy. With three knobs oriented at 120 degrees around the wheel’s perimeter, there will always be a knob between the 10:00 and 2:00 position. This makes for very convenient operation. Grabbing a knob and rotating from 2:00 to 10:00 (1/3 revolution) moves the chop over 1/8”; more than enough to remove your workpiece. Giving the handwheel a healthy spin opens the jaw wider and more quickly (use one of the knobs, or grasp the rim itself) and closing the vice from this position with another healthy spin closes the vice rapidly against your workpiece. In most cases, further tightening of the vice is unnecessary.

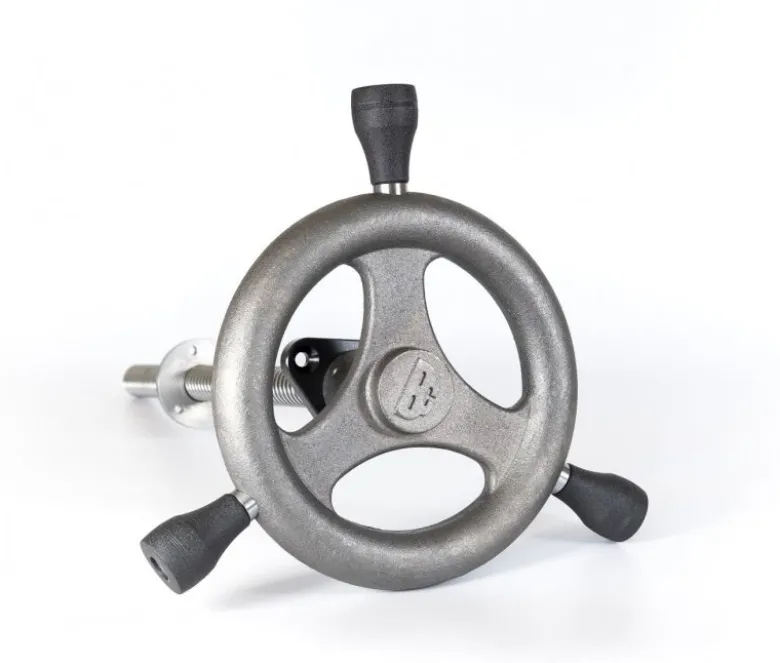

With a more traditional look and lower cost, the Glide C features a sand-cast iron handwheel with durable, wrinkle coated, aluminium knobs. The natural texture of the sand mould is present on the finished handwheel.

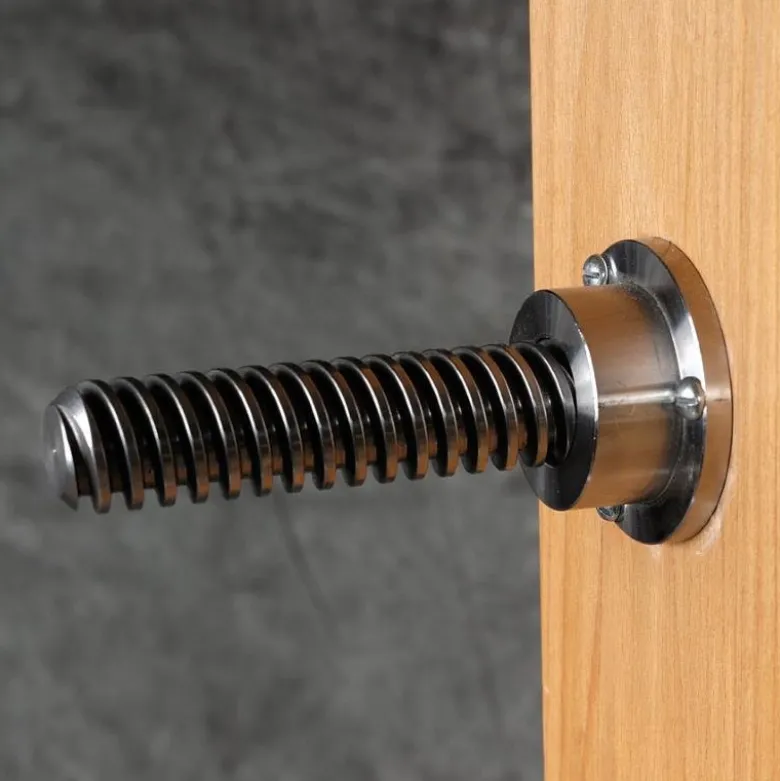

The heart of the Glide is a rolled-thread double-lead acme screw. At four turns per inch, the screw opens and closes the chop 1/2”per revolution of the handwheel, twice as fast as typical metal vice screws. Roll threading creates a hardened, polished thread for smooth action, and consolidates the molecular structure for durability, unlike screws with cut threads. Benchcraftedturn theirnuts from solid billets of steel and tap them to work sweetly with the Glide’s screw.

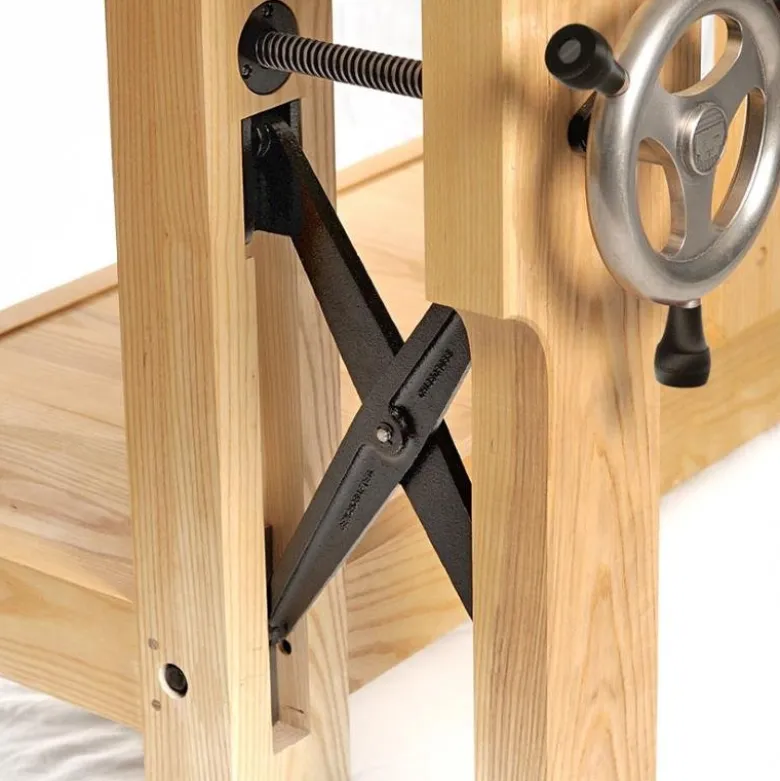

The Benchcrafted Crisscross mechanism is an integral part of the Glide.The mass and free spinning action of the handwheel are provided with unencumbered movement over the vice’s entire range by the Crisscross, which completely supports the weight of the chop and Glide components. Additionally, the Crisscross completely eliminates the traditional wooden parallel guide and its adjustment pin. The Crisscross is maintenance free. Once you install it properly, there are no adjustments to make. Ever.

Crisscross parts not included! The Glide Leg Vice Base Hardware must be paired either with a Crisscross Solo or with a Crisscross Retro
